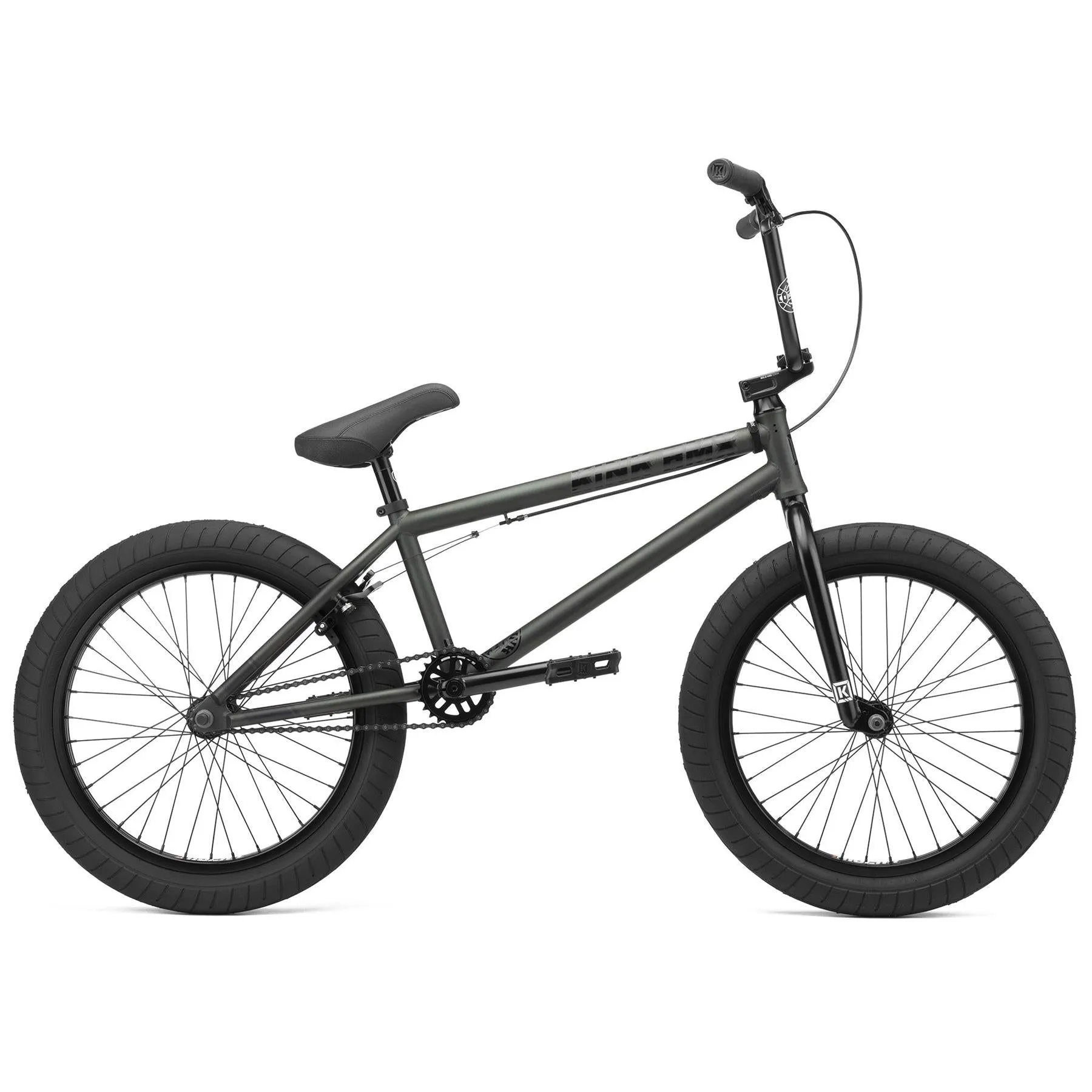

This beast is constructed using full 100% 4130 chromoly throughout the entire frame. fork. and handlebar set. Complimenting this strong. durable structure are sealed bearings everywhere; headset. bottom bracket. and both front and rear hubs.

Both wheels are laced up with Mission Mylar rims. giving this bike double wall rims front and rear. Featuring Kink Stryker forks. 9” Kink T900 bars and Kink Ridge 3-piece tubular chromoly cranks. the Whip is fitted with great components featuring modern geometry.

Adding to all these specs are the comfortable Kink Form flangeless grips. Kink Hemlock pedals. and Mission Charge sprocket.

###section###

Product Specs

1. FRAME MATERIAL: 100% Chromoly
2. WHEEL SIZE: 20
3. TOP TUBE LENGTH: 20.5
4. CHAIN STAY LENGTH: 13.25
5. HEADTUBE ANGLE: 75°
6. SEAT TUBE ANGLE: 71°
7. FORKS: 100% Chromoly With Tapered Fork Legs
8. BARS:
   - MATERIAL: Chromoly
   - TYPE: 2-Piece
   - RISE: 9 RIse
   - WIDTH:
9. STEM: Alloy Top Load
10. HEADSET: Integrated
11. BRAKE MOUNTS: Welded Mount
12. BRAKES: U-Brake
13. FRONT HUB: 10mm Sealed
14. FRONT RIM: Double Wall
15. REAR HUB: 14mm Sealed Cassette
16. REAR RIM: Double Wall
17. TYRES: 2.4
18. SPROCKET: 25t
19. CRANKS:
    - MATERIAL: Chromoly
    - TYPE: 3-Piece
    - ARM LENGTH: 170mm
20. BB: 19mm Mid
21. PEDALS: Nylon/Fiberglass
22. SEAT: Stealth Seat
23. GEARING: 25/9
24. WEIGHT: 27.7lbs (12.6kg)

###section###

Product Highlights

• Great for riders who are between 5ft and 6ft tall (150cm - 180cm)
• A great all rounder suitable for any type of riding
• High-quality Chromoly construction
• Sealed bearings throughout
• Strong and durable double walled rims
